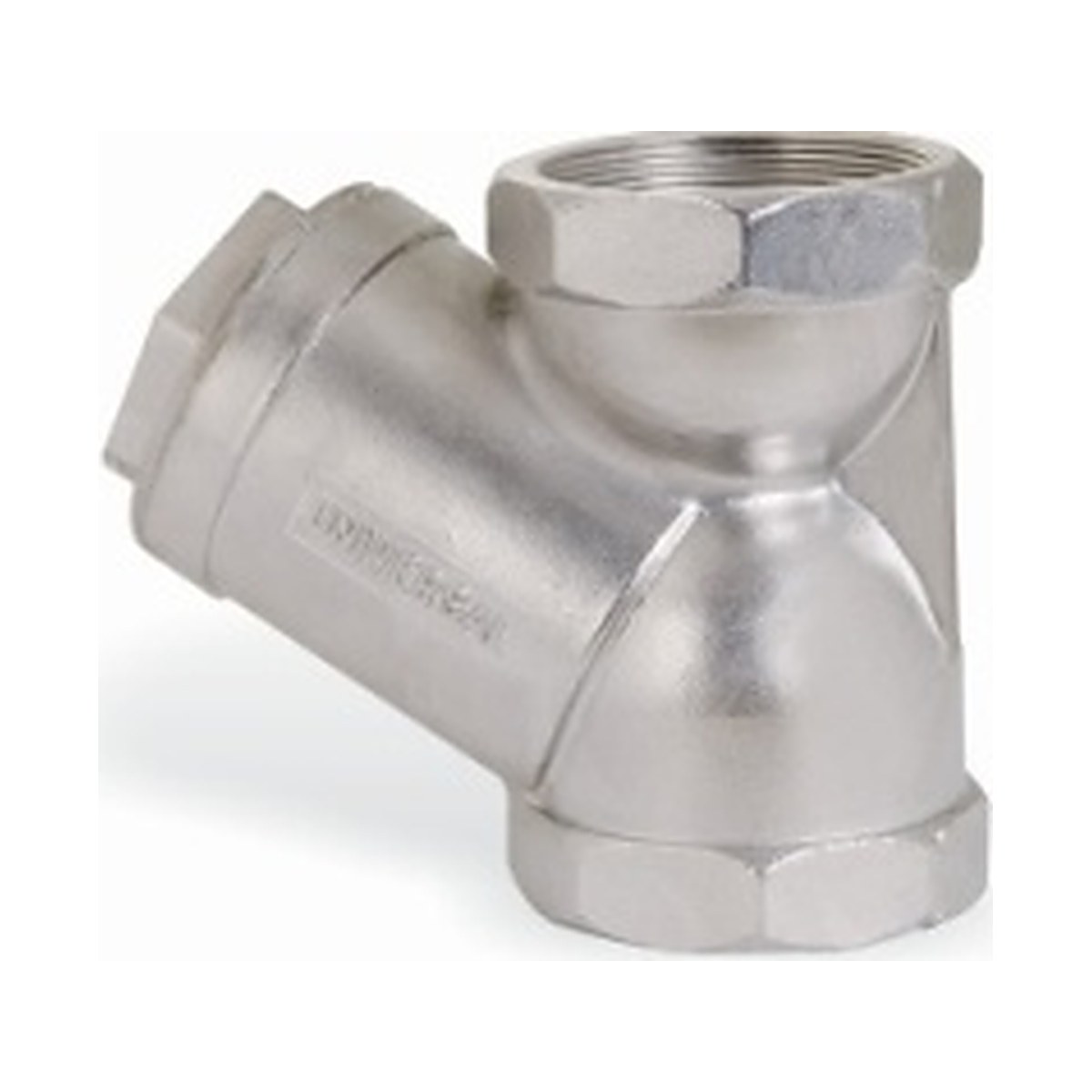

Investment Casting Y Type Strainer – Screwed End (SS 304 / SS 316) – Specifications & Price

The Investment Casting Y Type Strainer – Screwed End (SS 304 / SS 316) is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A Y type strainer removes rust, scale, weld spatter and other debris from the line with a cylindrical screen. This protects downstream pumps, meters, control valves and steam traps. The angled screen leg can be cleaned through a cover without disturbing the pipework.

Investment (lost wax) casting gives a dense, smooth body with accurate dimensions and a fine surface finish. CF8 is the cast equivalent of SS 304 and CF8M the cast equivalent of SS 316. CF8M contains molybdenum for better resistance to chlorides, acids and pitting.

Available in sizes 15 mm to 80 mm. Choose material from CF8 (SS 304), CF8M (SS 316). Select your size and options above to see the price per piece.

Key Features

• Protects pumps, meters, traps and control valves
• Removable stainless steel screen – easy cleaning
• Compact Y pattern, horizontal or vertical (downward flow) installation
• Blow-down connection possible on cover

Technical Specifications

Applications

Typical uses include steam, water, oil, gas and chemical lines. Investment Casting construction is widely used in chemical, pharmaceutical, food & beverage, dairy, water treatment and general process industries.

Pricing & Ordering

• Prices are per piece in Indian Rupees, ex-works Ahmedabad.
• GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
• Packing & forwarding: 1.5% extra.
• Third-party inspection, if required: 5% extra.
• Test certificates and material test certificates are available on request.

For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
