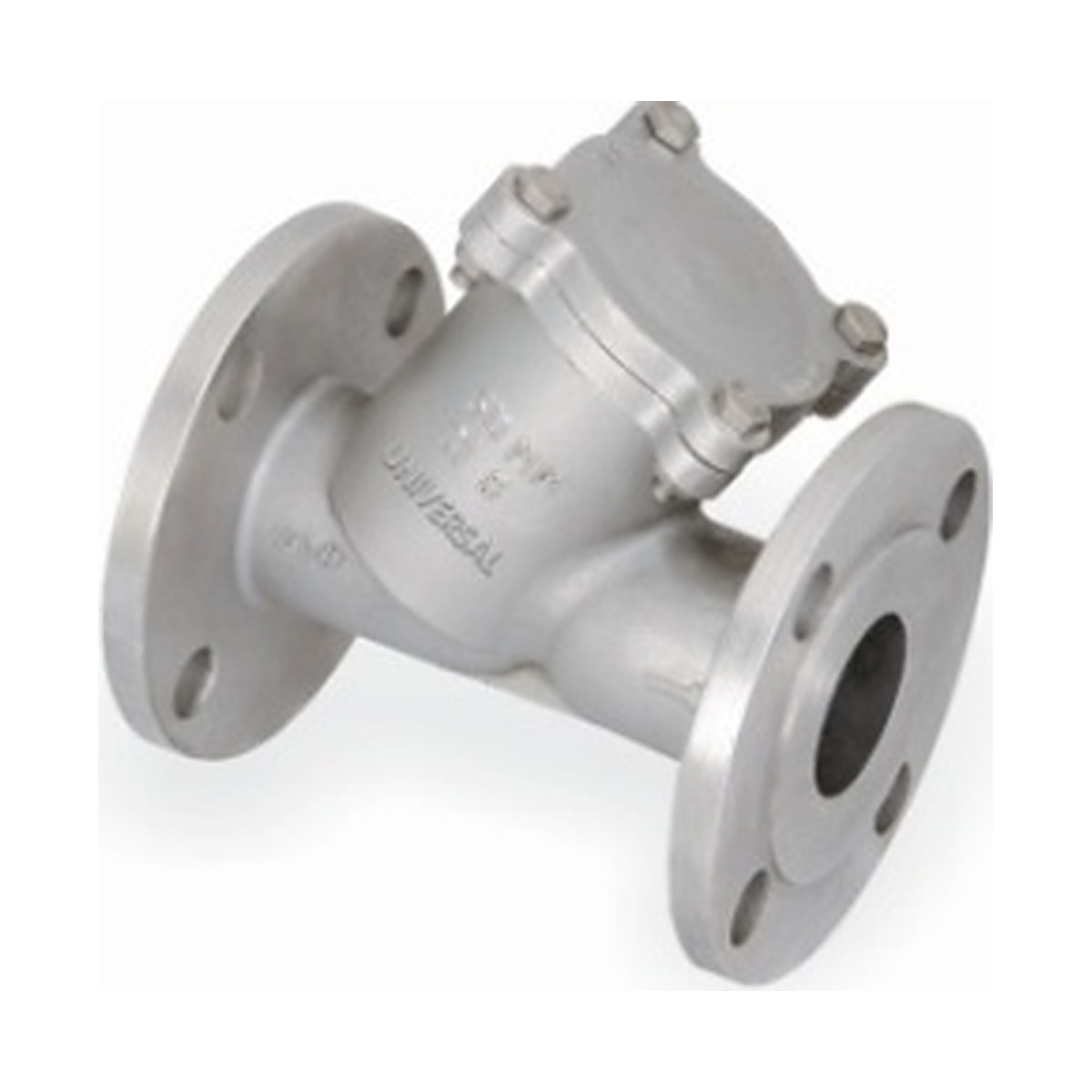

Investment Casting Y Type Strainer – Flanged End ASA 150# with Bolted Cover
A Y type strainer removes rust, scale, weld spatter and other debris from the line with a cylindrical screen.
Body: CF8 (SS 304) / CF8M (SS 316) – investment casting 15–150 mm, sand casting 200–300 mm
Type: Y type strainer with bolted cover
Ends: Flanged ends to ASA 150#
Sizes: 15 / 20 mm to 300 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹4,670.31 through ₹505,050.00 + GST
Description
Investment Casting Y Type Strainer – Flanged End ASA 150# with Bolted Cover – Specifications & Price
The Investment Casting Y Type Strainer – Flanged End ASA 150# with Bolted Cover is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A Y type strainer removes rust, scale, weld spatter and other debris from the line with a cylindrical screen. This protects downstream pumps, meters, control valves and steam traps. The angled screen leg can be cleaned through a cover without disturbing the pipework.
Investment (lost wax) casting gives a dense, smooth body with accurate dimensions and a fine surface finish. CF8 is the cast equivalent of SS 304 and CF8M the cast equivalent of SS 316. CF8M contains molybdenum for better resistance to chlorides, acids and pitting.
Available in sizes 15 / 20 mm to 300 mm. Choose material from CF8 (SS 304), CF8M (SS 316). Select your size and options above to see the price per piece.
Key Features
- Protects pumps, meters, traps and control valves
- Removable stainless steel screen – easy cleaning
- Compact Y pattern, horizontal or vertical (downward flow) installation
- Blow-down connection possible on cover
Technical Specifications
| Type | Y type strainer with bolted cover |
|---|---|
| Body | CF8 (SS 304) / CF8M (SS 316) – investment casting 15–150 mm, sand casting 200–300 mm |
| Screen | Stainless steel perforated / mesh screen |
| Ends | Flanged ends to ASA 150# |
| Size Range | 15 / 20 mm to 300 mm |
| Material Options | CF8 (SS 304), CF8M (SS 316) |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include steam, water, oil, gas and chemical lines. Investment Casting construction is widely used in chemical, pharmaceutical, food & beverage, dairy, water treatment and general process industries.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 15 / 20 mm, 25 mm, 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm |
|---|---|
| Material | CF8 (SS 304), CF8M (SS 316) |
