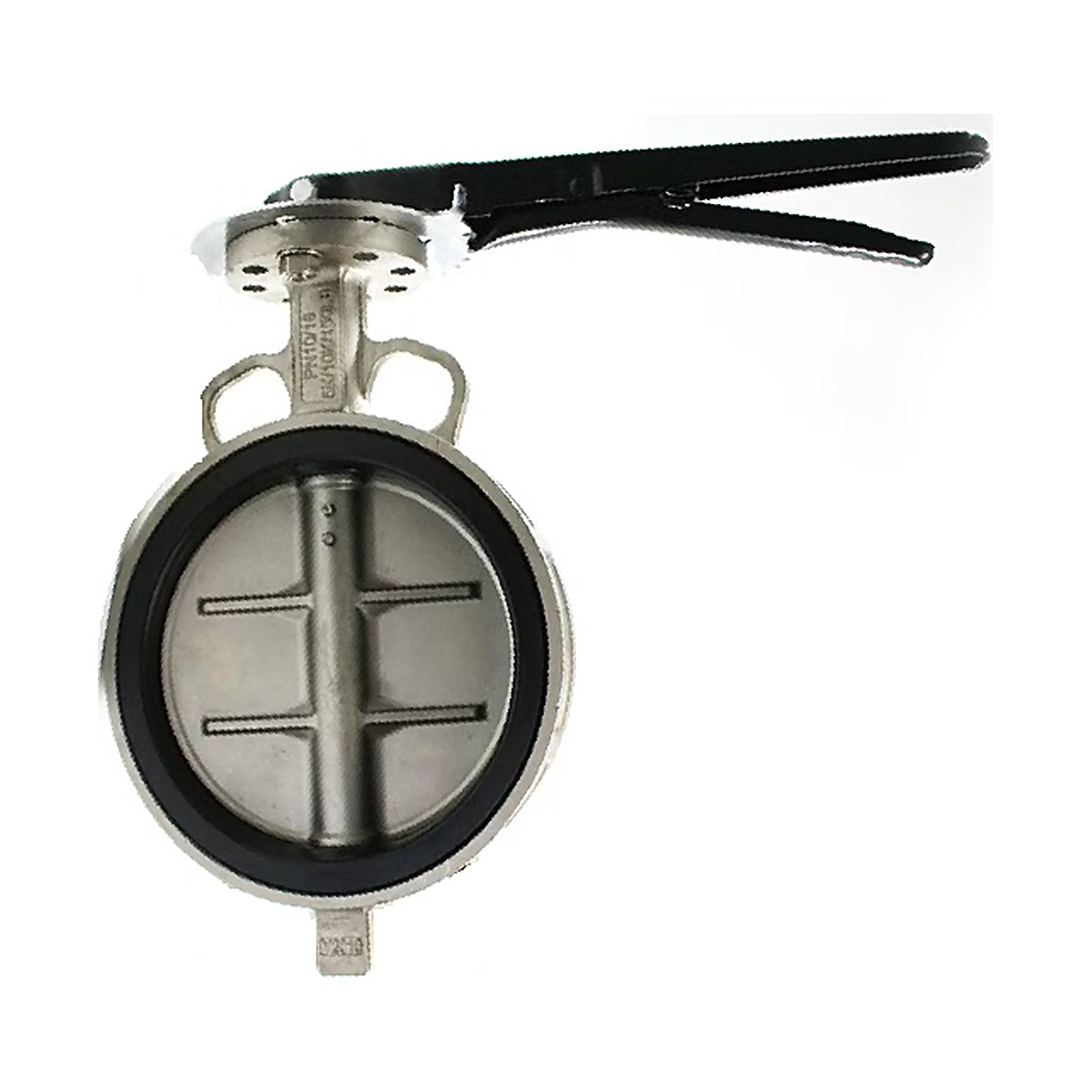

Investment Casting Butterfly Valve – Wafer Type, EPDM Seat, Hand Lever PN 16
A centric (concentric) butterfly valve uses a rotating disc on a central shaft to regulate or isolate flow.
Body: Investment casting SS 304 / SS 316
Type: Centric disc, wafer type
Seat: EPDM rubber
Disc: SS 304 / SS 316
Sizes: 40 mm to 300 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹4,130.28 through ₹65,204.37 + GST
Description
Investment Casting Butterfly Valve – Wafer Type, EPDM Seat, Hand Lever PN 16 – Specifications & Price
The Investment Casting Butterfly Valve – Wafer Type, EPDM Seat, Hand Lever PN 16 is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A centric (concentric) butterfly valve uses a rotating disc on a central shaft to regulate or isolate flow. The wafer pattern sits between two pipe flanges, making it the lightest and most economical valve for medium and large pipelines.
Investment (lost wax) casting gives a dense, smooth body with accurate dimensions and a fine surface finish. CF8 is the cast equivalent of SS 304 and CF8M the cast equivalent of SS 316. CF8M contains molybdenum for better resistance to chlorides, acids and pitting.
Available in sizes 40 mm to 300 mm. Choose disc material from SS 304 Disc, SS 316 Disc. Select your size and options above to see the price per piece.
Key Features
- Compact, lightweight wafer body – fits between standard flanges
- Quarter-turn operation; suitable for on/off and throttling
- Resilient seat gives bubble-tight shut-off
- Low torque and minimal pressure drop
Technical Specifications
| Type | Centric disc, wafer type |
|---|---|
| Body | Investment casting SS 304 / SS 316 |
| Disc | SS 304 / SS 316 |
| Seat | EPDM rubber |
| Rating | PN 16 |
| Operation | Hand lever |
| Size Range | 40 mm to 300 mm |
| Disc Material Options | SS 304 Disc, SS 316 Disc |
| Testing | Hydrostatic shell & seat test, generally to API 598 |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include water supply, cooling water, HVAC, fire-fighting, effluent treatment, air and low-pressure gas lines. Investment Casting construction is widely used in chemical, pharmaceutical, food & beverage, dairy, water treatment and general process industries.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm |
|---|---|
| Disc Material | SS 304 Disc, SS 316 Disc |
