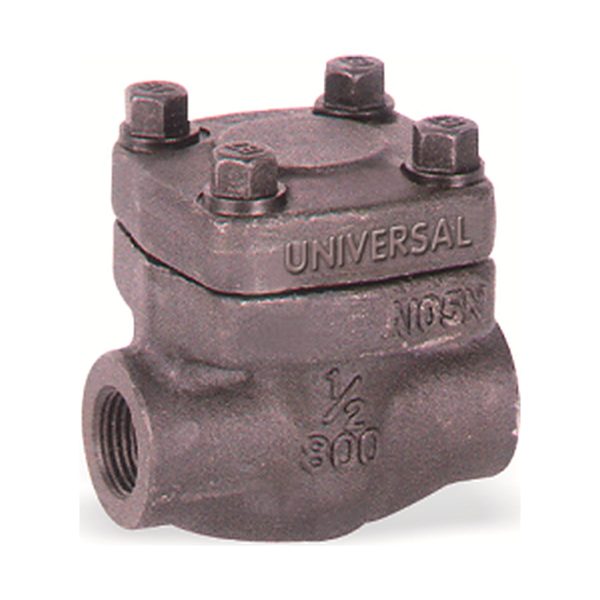

Forged Carbon Steel A-105 Check Valve (NRV) 800# – Screwed / Socket Weld / Flanged
Forged steel check valves (NRV) prevent reverse flow in small-bore high-pressure lines, with a forged body for strength and integrity.
Body: Forged carbon steel ASTM A105
Type: Lift / piston check valve, bolted cover, class 800#
Ends: Screwed / socket weld ends or flanged ends ASA 150#
Sizes: 15 mm to 50 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹2,271.50 through ₹12,774.30 + GST
Description
Product Overview
The Forged Carbon Steel A-105 Check Valve (NRV) 800# – Screwed / Socket Weld / Flanged is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. Forged steel check valves (NRV) prevent reverse flow in small-bore high-pressure lines, with a forged body for strength and integrity.
Forged bodies (ASTM A105 carbon steel, A182 F304/F316 stainless or F11/F22 alloy steel) are dense and free from casting defects. This makes them the preferred choice for small-bore, high-pressure and high-temperature lines.
Available in sizes 15 mm to 50 mm. Choose end connection from Screwed / Socket Weld, Flanged ASA 150#. Select your size and options above to see the price per piece.
Key Features
- Forged body for high pressure service
- Bolted cover
- Screwed, socket weld or flanged ends
- Lift / piston check design
Technical Specifications
| Type | Lift / piston check valve, bolted cover, class 800# |
|---|---|
| Body | Forged carbon steel ASTM A105 |
| Trim | 13% Cr |
| Ends | Screwed / socket weld ends or flanged ends ASA 150# |
| Size Range | 15 mm to 50 mm |
| End Connection Options | Screwed / Socket Weld, Flanged ASA 150# |
| Testing | Hydrostatic shell & seat test, generally to API 598 |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include steam, hydrocarbon, utility and instrument lines. Forged Steel construction is widely used in refineries, power plants, petrochemicals, steam and high pressure process lines.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 15 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm |
|---|---|
| End Connection | Screwed / Socket Weld, Flanged ASA 150# |
