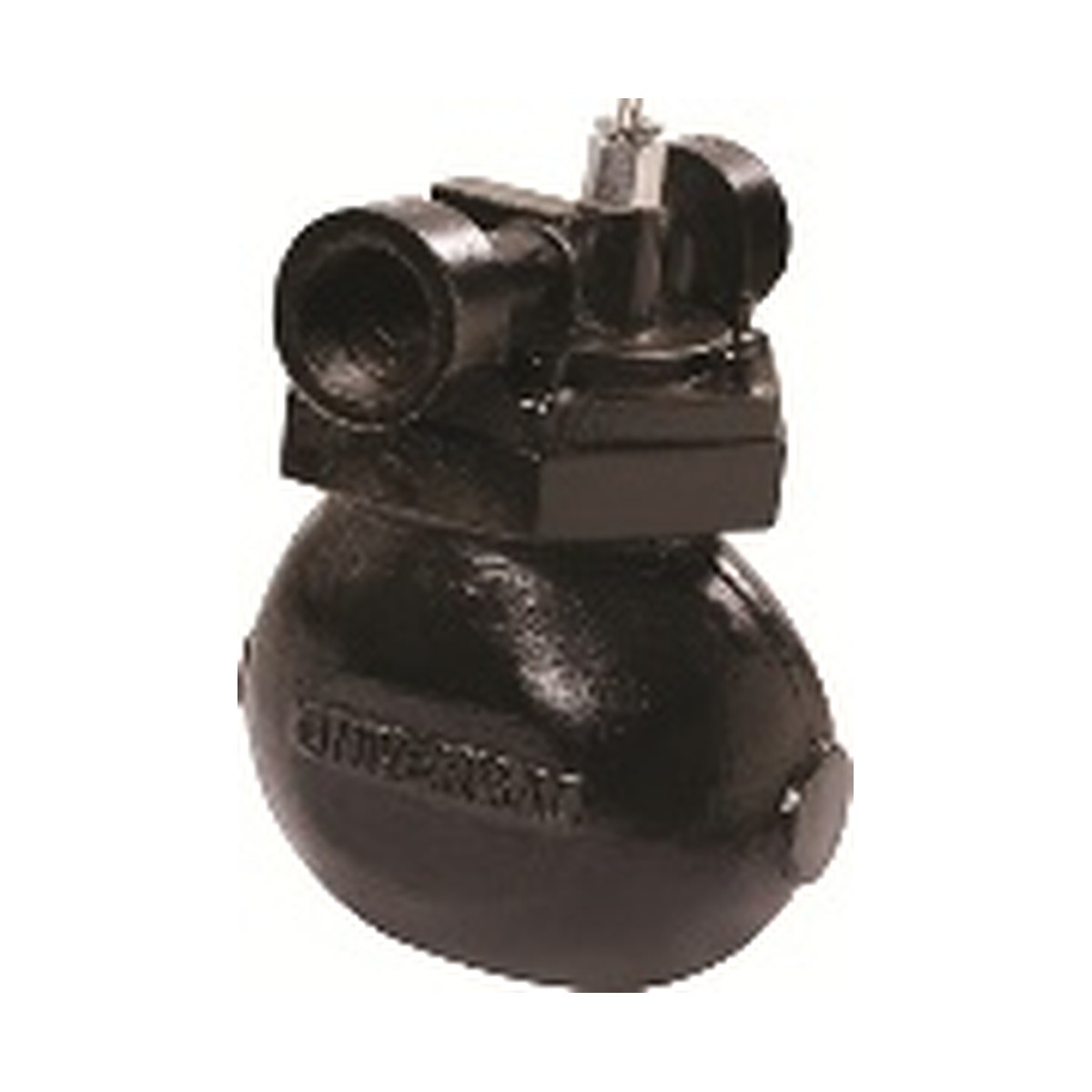

Cast Steel WCB Ball Float Steam Trap – Screwed / Flanged ASA 150#
A ball float steam trap discharges condensate continuously as it forms.
Body: Cast steel WCB
Type: Ball float steam trap
Ends: Screwed ends or flanged ends ASA 150#
Sizes: 15 mm to 50 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹9,465.52 through ₹48,312.10 + GST
Description
Cast Steel WCB Ball Float Steam Trap – Screwed / Flanged ASA 150# – Specifications & Price
The Cast Steel WCB Ball Float Steam Trap – Screwed / Flanged ASA 150# is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A ball float steam trap discharges condensate continuously as it forms. A float rises with the condensate level to open the outlet, so equipment stays drained and heat transfer stays at maximum.
Cast steel ASTM A216 WCB has higher strength and toughness than cast iron. It is suited to higher pressures and temperatures and is the standard material for steam, oil and hydrocarbon service.
Available in sizes 15 mm to 50 mm. Choose end connection from Screwed Ends, Flanged ASA 150#. Select your size and options above to see the price per piece.
Key Features
- Continuous condensate discharge
- Handles large and variable condensate loads
- Ideal for heat exchangers and process equipment
- Screwed or flanged connections
Technical Specifications
| Type | Ball float steam trap |
|---|---|
| Body | Cast steel WCB |
| Float | Stainless steel ball float |
| Ends | Screwed ends or flanged ends ASA 150# |
| Size Range | 15 mm to 50 mm |
| End Connection Options | Screwed Ends, Flanged ASA 150# |
| Testing | Hydrostatic shell & seat test, generally to API 598 |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include heat exchangers, air heaters, process vessels, reboilers and steam mains. Cast Steel construction is widely used in refineries, petrochemicals, power plants, steam systems, oil & gas and chemical industries.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 15 mm, 20 mm, 25 mm, 40 mm, 50 mm |
|---|---|
| End Connection | Screwed Ends, Flanged ASA 150# |
