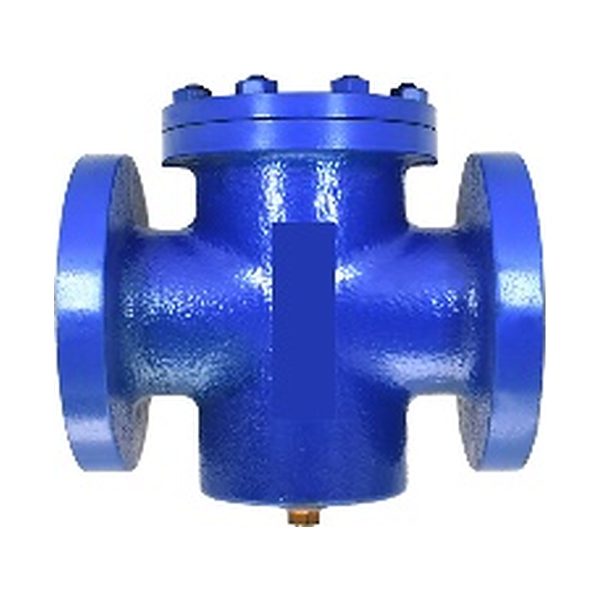

Cast Iron Y Type / T Type Strainer – Flanged, Table “E” Drilled
A Y type strainer removes rust, scale, weld spatter and other debris from the line with a cylindrical screen.
Body: Cast iron
Type: Y type or T type strainer
Ends: Flanged ends, Table “E” drilling
Sizes: 25 mm to 300 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹1,790.00 through ₹76,791.00 + GST
Description
Cast Iron Y Type / T Type Strainer – Flanged, Table "E" Drilled – Specifications & Price
The Cast Iron Y Type / T Type Strainer – Flanged, Table “E” Drilled is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A Y type strainer removes rust, scale, weld spatter and other debris from the line with a cylindrical screen. This protects downstream pumps, meters, control valves and steam traps. The angled screen leg can be cleaned through a cover without disturbing the pipework.
Cast iron is a strong, economical body material with good damping and wear resistance. It is the standard choice for water, utility and low-pressure services.
Available in sizes 25 mm to 300 mm. Choose strainer type from Y Type, T Type. Select your size and options above to see the price per piece.
Key Features
- Protects pumps, meters, traps and control valves
- Removable stainless steel screen – easy cleaning
- Compact Y pattern, horizontal or vertical (downward flow) installation
- Blow-down connection possible on cover
Technical Specifications
| Type | Y type or T type strainer |
|---|---|
| Body | Cast iron |
| Screen | Stainless steel screen |
| Ends | Flanged ends, Table “E” drilling |
| Size Range | 25 mm to 300 mm |
| Strainer Type Options | Y Type, T Type |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include steam, water, oil, gas and chemical lines. Cast Iron construction is widely used in water supply, HVAC, fire-fighting, effluent, sugar, textile and general utility services.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 25 mm, 32 mm, 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm |
|---|---|
| Strainer Type | Y Type, T Type |
