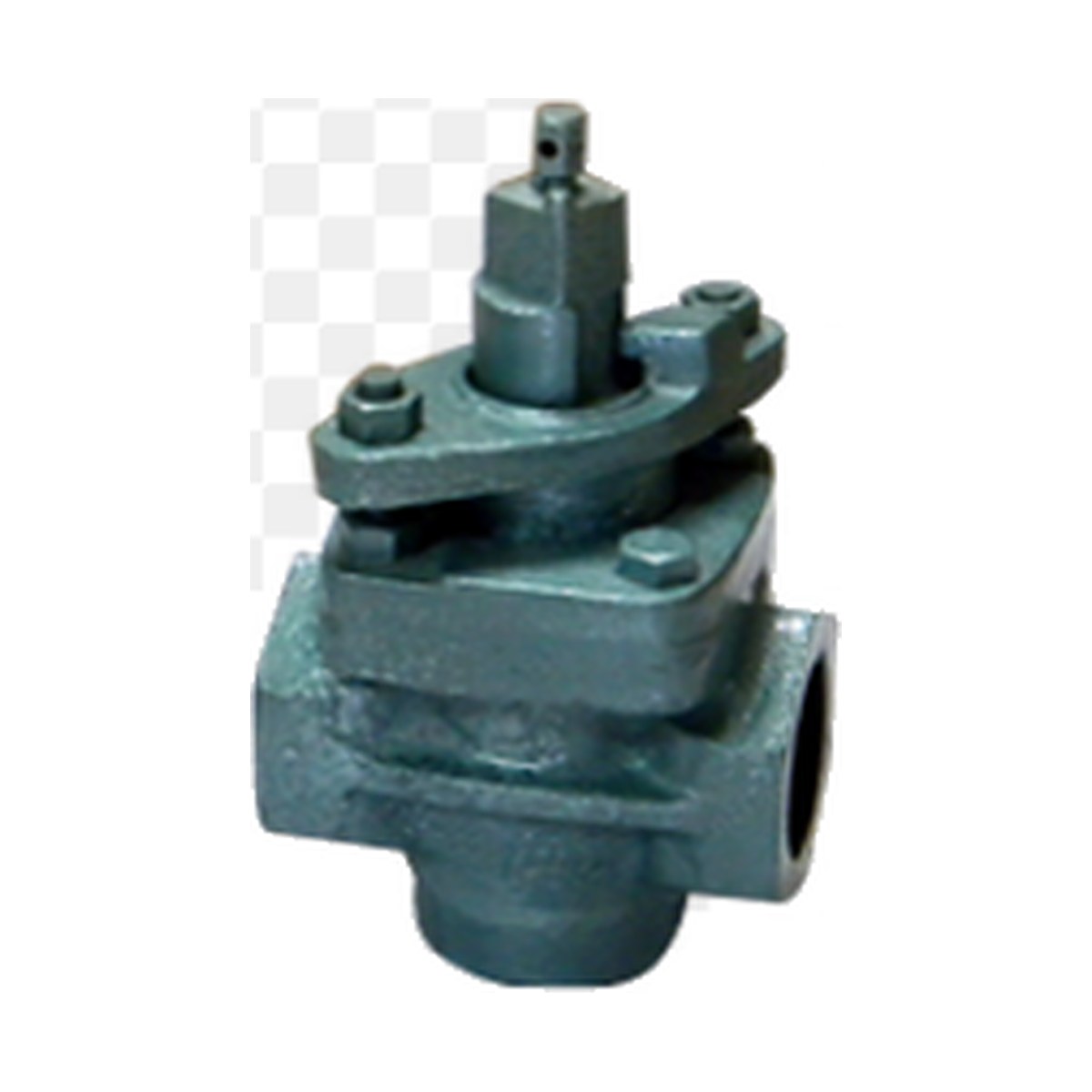

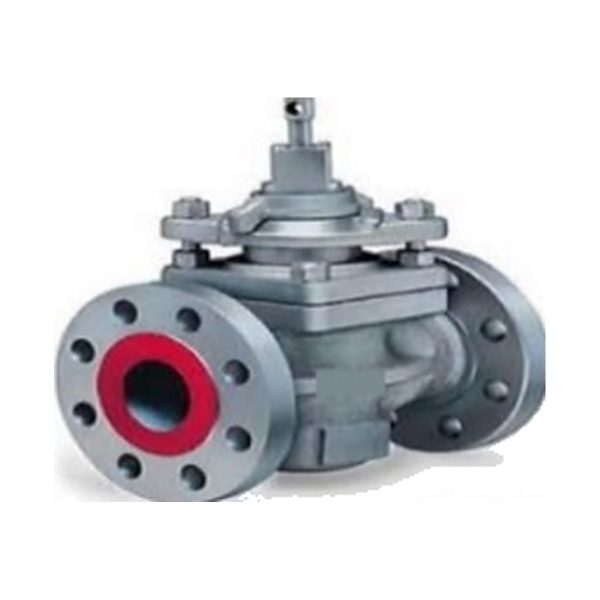

Cast Iron 2 Way Self Lubricating Plug Valve (Gland Cock) – Screwed / Flanged
A plug valve uses a tapered plug with a port that turns a quarter-turn to open or close.
Body: Cast iron
Type: 2 way self lubricating plug valve
Ends: Screwed ends or flanged ends
Operation: Wrench
Sizes: 15 mm to 200 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹3,494.40 through ₹227,331.00 + GST
Description
Product Overview
The Cast Iron 2 Way Self Lubricating Plug Valve (Gland Cock) – Screwed / Flanged is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A plug valve uses a tapered plug with a port that turns a quarter-turn to open or close. Self-lubricating designs keep a film of lubricant on the sealing faces for tight shut-off and easy operation even in dirty service.
Cast iron is a strong, economical body material with good damping and wear resistance. It is the standard choice for water, utility and low-pressure services.
Available in sizes 15 mm to 200 mm. Choose end connection from Screwed Ends, Flanged Ends. Select your size and options above to see the price per piece.
Key Features
- Quarter-turn on/off operation
- Self-lubricating for smooth operation and tight sealing
- Straight-through port
- Robust construction for tough service
Technical Specifications
| Type | 2 way self lubricating plug valve |
|---|---|
| Body | Cast iron |
| Ends | Screwed ends or flanged ends |
| Operation | Wrench |
| Size Range | 15 mm to 200 mm |
| End Connection Options | Screwed Ends, Flanged Ends |
| Testing | Hydrostatic shell & seat test, generally to API 598 |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include oil, gas, slurries, chemicals and general process lines. Cast Iron construction is widely used in water supply, HVAC, fire-fighting, effluent, sugar, textile and general utility services.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 15 mm, 20 mm, 25 mm, 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm |
|---|---|
| End Connection | Screwed Ends, Flanged Ends |
