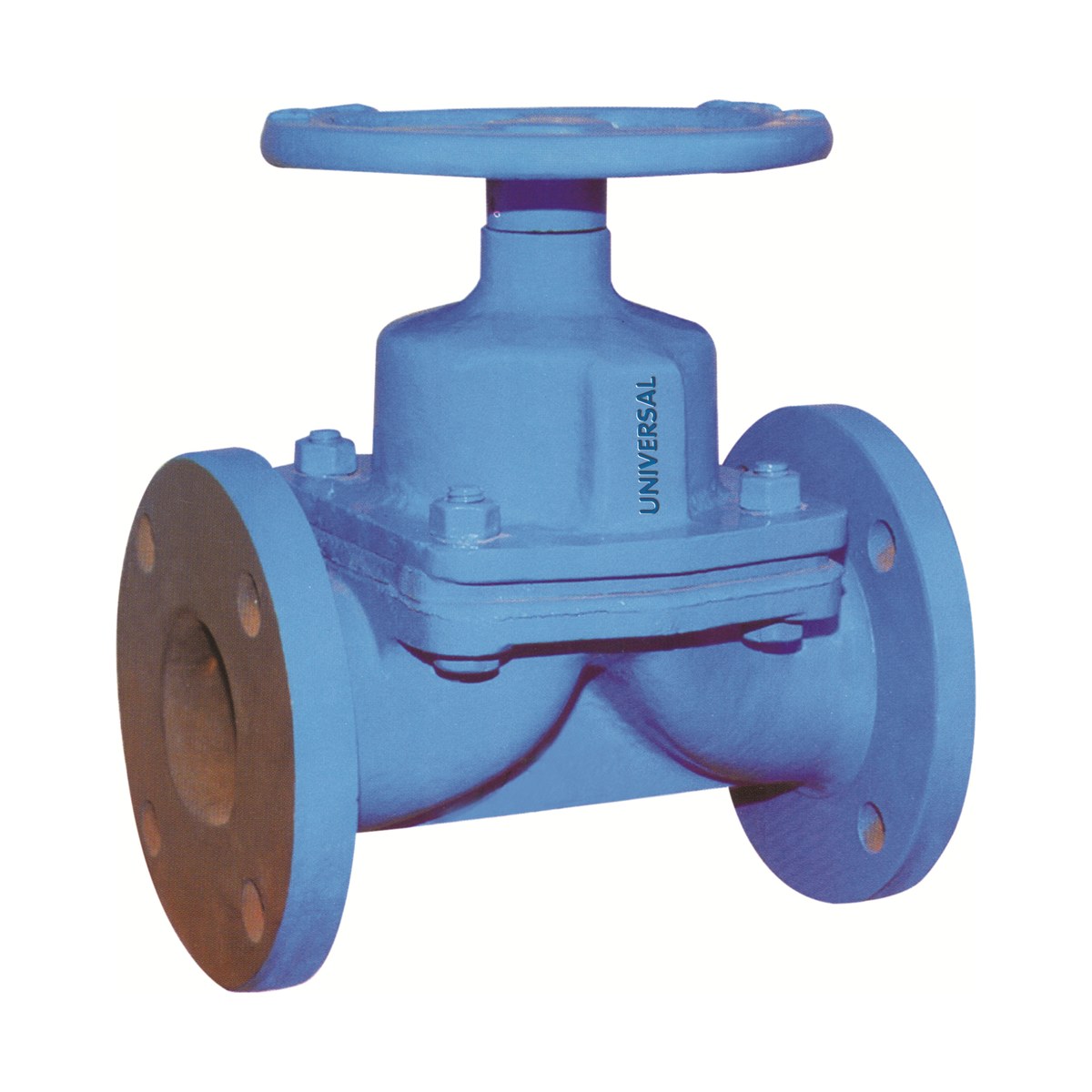

Cast Iron Rubber Lined Diaphragm Valve – Flanged End – Specifications & Price

The Cast Iron Rubber Lined Diaphragm Valve – Flanged End is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A diaphragm valve closes by pressing a flexible diaphragm onto a weir. The diaphragm isolates the operating mechanism from the fluid, so it handles corrosive, abrasive and hygienic media without leakage to atmosphere.

Cast iron is a strong, economical body material with good damping and wear resistance. It is the standard choice for water, utility and low-pressure services.

Available in sizes 25 mm to 150 mm. Select your size and options above to see the price per piece.

Key Features

• Diaphragm isolates bonnet from fluid – no gland leakage
• Smooth flow path with no pockets
• Handles corrosive, abrasive and slurry media
• Diaphragm can be replaced in-line

Technical Specifications

Applications

Typical uses include chemical, water treatment, DM plants, effluent, food and pharmaceutical lines. Cast Iron construction is widely used in water supply, HVAC, fire-fighting, effluent, sugar, textile and general utility services.

Pricing & Ordering

• Prices are per piece in Indian Rupees, ex-works Ahmedabad.
• GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
• Packing & forwarding: 1.5% extra.
• Third-party inspection, if required: 5% extra.
• Test certificates and material test certificates are available on request.

For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
