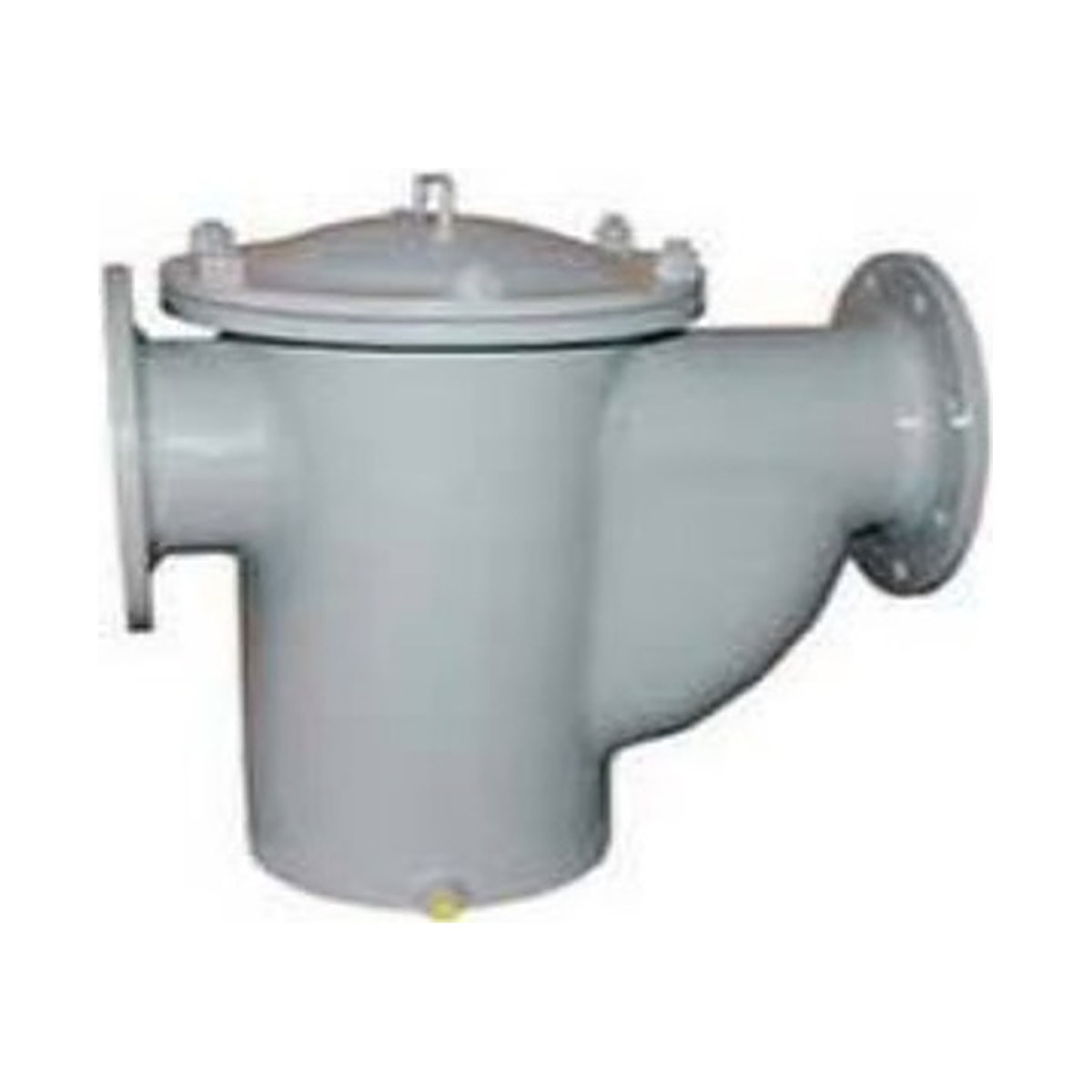

Cast Iron Pot (Bucket) Type Strainer – Flanged End
A pot (bucket) type strainer houses a removable bucket screen in a pot-shaped body, giving excellent dirt-holding capacity for heavy-duty filtration of large flows.
Body: Cast iron
Type: Pot / bucket type strainer
Ends: Flanged ends
Sizes: 40 mm to 300 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹7,589.40 through ₹258,164.40 + GST
Description
Product Overview
The Cast Iron Pot (Bucket) Type Strainer – Flanged End is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A pot (bucket) type strainer houses a removable bucket screen in a pot-shaped body, giving excellent dirt-holding capacity for heavy-duty filtration of large flows.
Cast iron is a strong, economical body material with good damping and wear resistance. It is the standard choice for water, utility and low-pressure services.
Available in sizes 40 mm to 300 mm. Select your size and options above to see the price per piece.
Key Features
- Large bucket screen with high dirt-holding capacity
- Removable top cover for easy cleaning
- Low pressure drop
- Fabricated for large sizes
Technical Specifications
| Type | Pot / bucket type strainer |
|---|---|
| Body | Cast iron |
| Screen | Stainless steel perforated bucket |
| Ends | Flanged ends |
| Size Range | 40 mm to 300 mm |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include raw water intake, cooling water, oil and chemical process lines. Cast Iron construction is widely used in water supply, HVAC, fire-fighting, effluent, sugar, textile and general utility services.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 40 mm, 50 mm, 65 mm, 80 mm, 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm |
|---|
