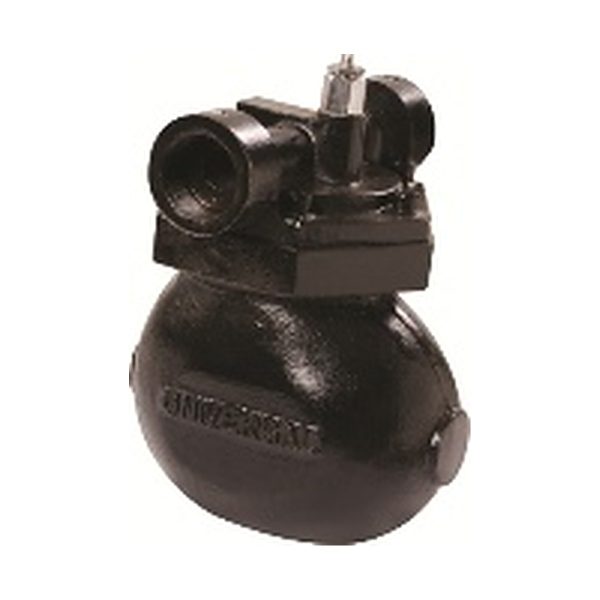

Cast Iron Ball Float Steam Trap – Screwed / Flanged ASA 150#
A ball float steam trap discharges condensate continuously as it forms.
Body: Cast iron
Type: Ball float (float & thermostatic) steam trap
Ends: Screwed ends or flanged ends ASA 150#
Sizes: 15 mm to 50 mm
Price per piece · GST extra · Ex-works Ahmedabad
Price range: ₹6,714.50 through ₹42,516.50 + GST
Description
Product Overview
The Cast Iron Ball Float Steam Trap – Screwed / Flanged ASA 150# is made by Universal Valves Pvt. Ltd., Ahmedabad, part of the Universal Group, which has manufactured industrial valves since 1972. A ball float steam trap discharges condensate continuously as it forms. A float rises with the condensate level to open the outlet, so equipment stays drained and heat transfer stays at maximum.
Cast iron is a strong, economical body material with good damping and wear resistance. It is the standard choice for water, utility and low-pressure services.
Available in sizes 15 mm to 50 mm. Choose end connection from Screwed Ends, Flanged ASA 150#. Select your size and options above to see the price per piece.
Key Features
- Continuous condensate discharge
- Handles large and variable condensate loads
- Ideal for heat exchangers and process equipment
- Screwed or flanged connections
Technical Specifications
| Type | Ball float (float & thermostatic) steam trap |
|---|---|
| Body | Cast iron |
| Float | Stainless steel ball float |
| Ends | Screwed ends or flanged ends ASA 150# |
| Size Range | 15 mm to 50 mm |
| End Connection Options | Screwed Ends, Flanged ASA 150# |
| Testing | Hydrostatic shell & seat test, generally to API 598 |
| Manufacturer | Universal Valves Pvt. Ltd., Changodar, Ahmedabad, Gujarat, India |
Applications
Typical uses include heat exchangers, air heaters, process vessels, reboilers and steam mains. Cast Iron construction is widely used in water supply, HVAC, fire-fighting, effluent, sugar, textile and general utility services.
Pricing & Ordering
- Prices are per piece in Indian Rupees, ex-works Ahmedabad.
- GST extra: 18% IGST, or 9% CGST + 9% SGST within Gujarat.
- Packing & forwarding: 1.5% extra.
- Third-party inspection, if required: 5% extra.
- Test certificates and material test certificates are available on request.
For special sizes, materials, pressure ratings, drilling standards or actuation, contact our sales team – custom valves are made to your drawing or specification.
Additional information
| Size | 15 mm, 20 mm, 25 mm, 40 mm, 50 mm |
|---|---|
| End Connection | Screwed Ends, Flanged ASA 150# |
